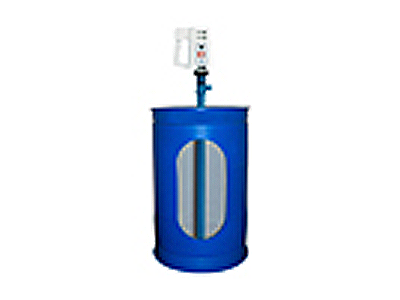

Sethco® High Power Sealless Drum Pumps

Sethco® high power sealless drum pumps provide safe and fast transfer of chemicals, solvents and other corrosive liquids in hazardous or non-hazardous environments. These pumps are routinely used to empty 55 gallon drums or other similar type containers.

• Capacities to 35 GPM (135 LPM)
• Heads to 39 feet (12 m)
• One piece tube insures safe, reliable operation
• Tube lengths in 10 inch (254 mm) increments from 30 inches (762 mm) to 60 inches (1524 mm)
• Air motors available
• Available for immediate delivery
• Standard electric and explosion proof motors suitable for 50/60 hz operation
• Choice of Polypropylene, Kynar® or 316SS construction

Sethco® High Power Sealless Magnetic Drive Drum Pumps

Sethco® high power sealless magnetic driven drum pumps provide safe and fast transfer chemicals, solvents and other corrosive liquids in hazardous or non-hazardous environments. These pumps are routinely used to empty 55 gallon drums or other similar type containers.

• Capacities to 35 GPM (53 LPM)
• Heads to 39 ft (7.9 m)
• One piece tube insures safe, reliable operation
• Tube lengths of 10 in (254 mm) and 30 in (762 mm)
• Standard electric and explosion proof motors suitable for 50/60 hz operation
• Air motors available
• Available for immediate delivery
• Choice of polypropylene, Kynar® or 316SS construction

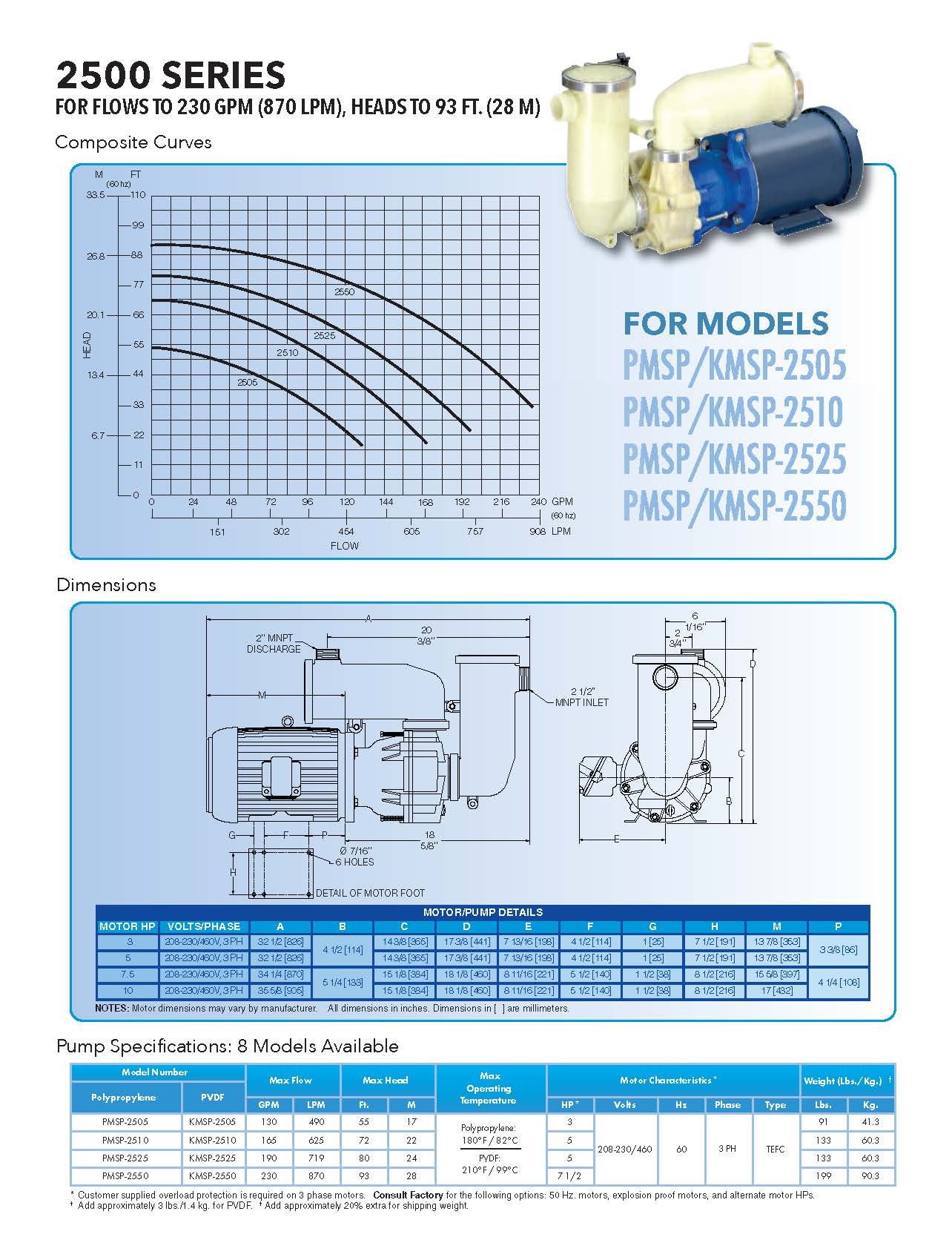

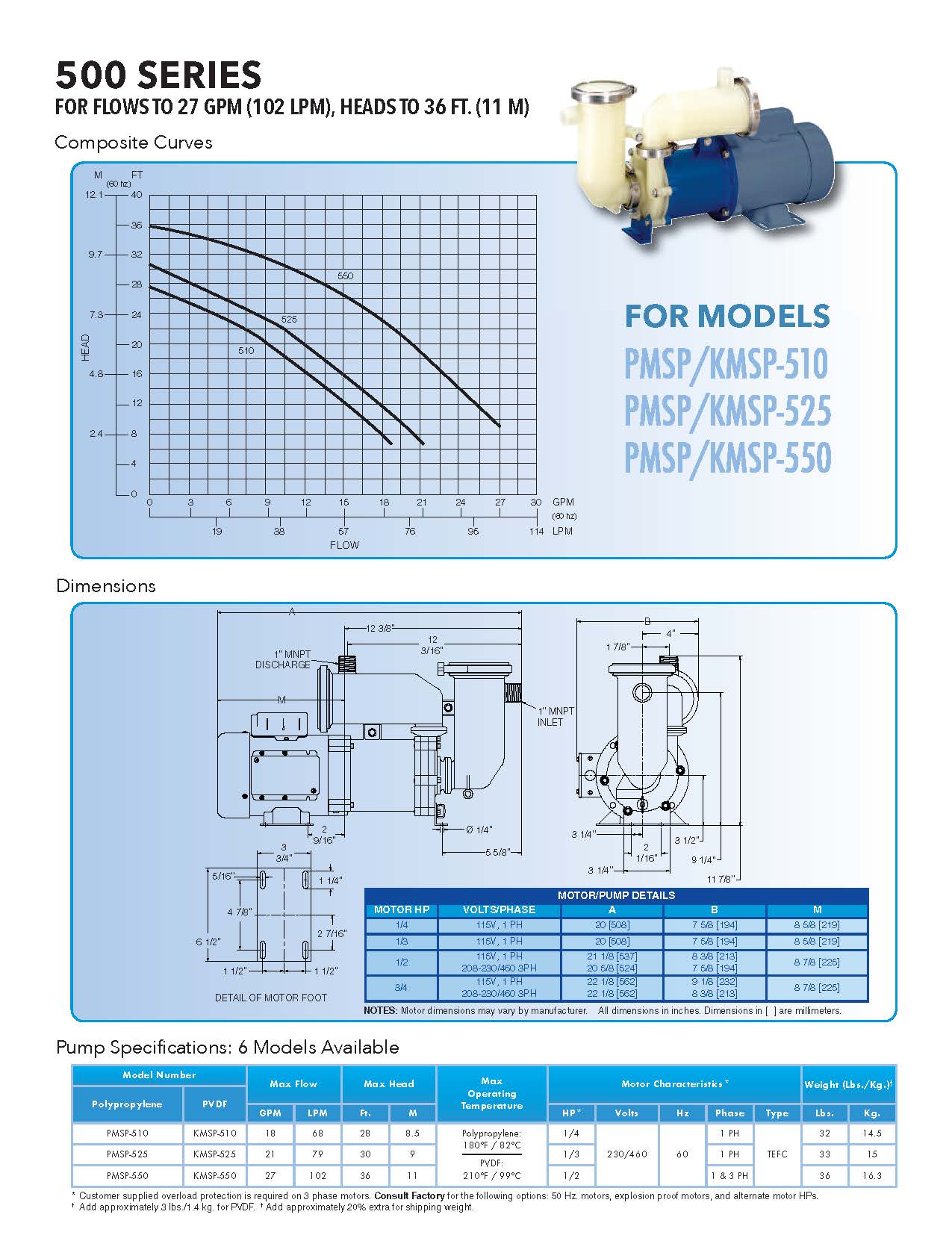

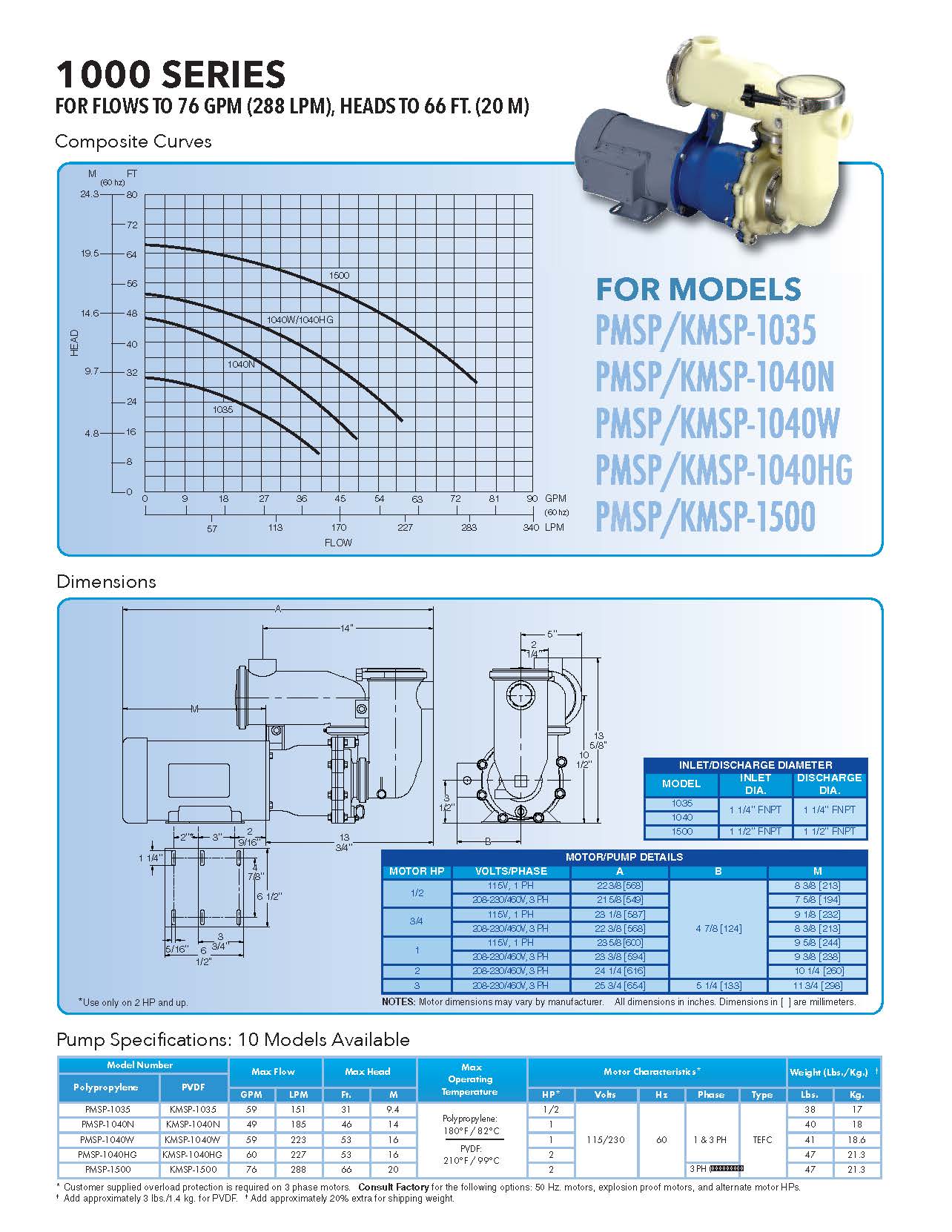

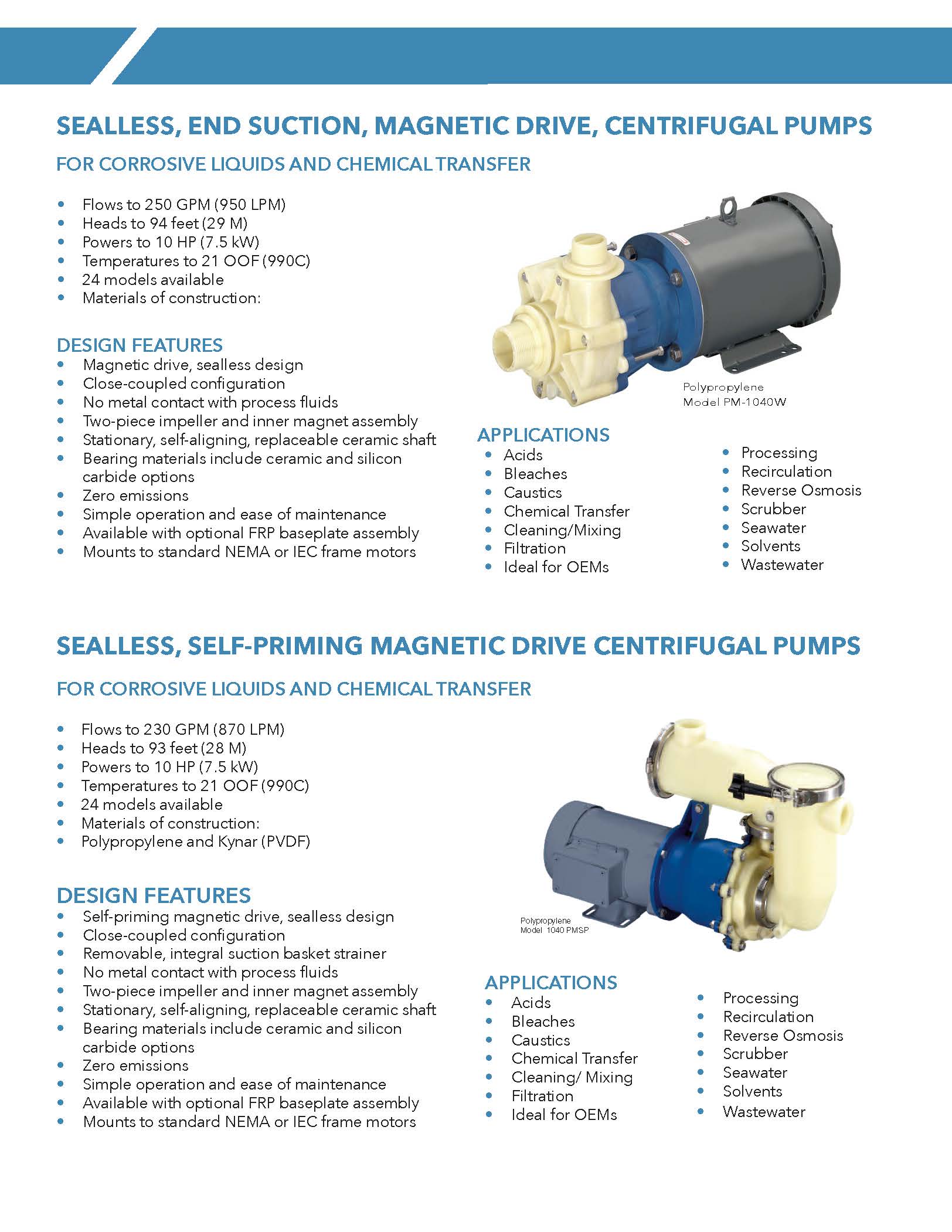

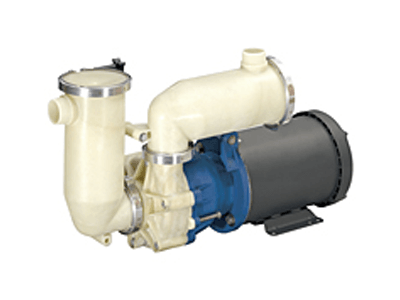

Sethco® Magnetic Drive Self-Priming Pumps

Sethco® magnetic drive self-priming pumps are precision designed to meet the demands of a wide range of OEM, chemical and industrial applications. These pumps can be used for highly corrosive or mild chemicals, acids or solvents. Their simple efficient design provides reliable, trouble-free performance and easy maintenance.

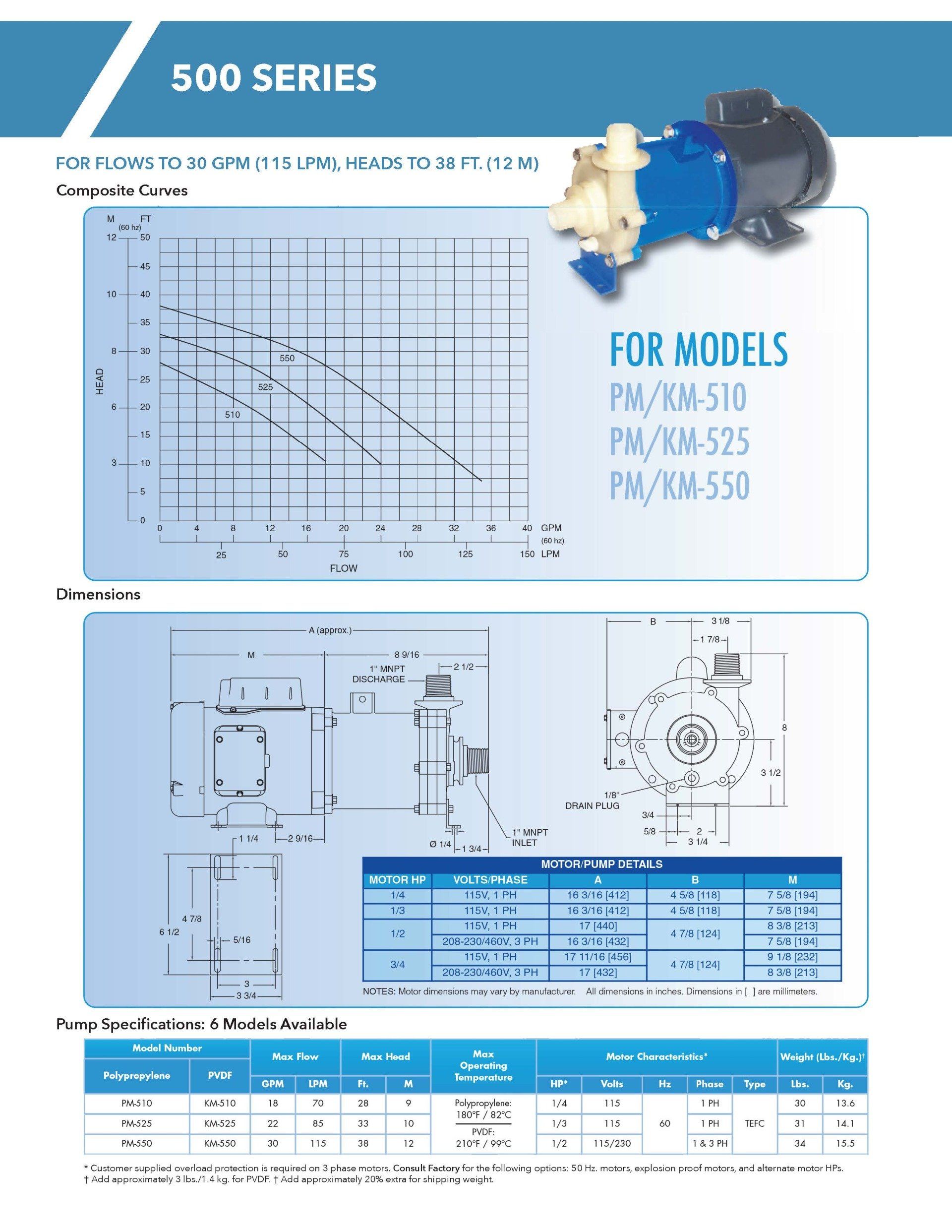

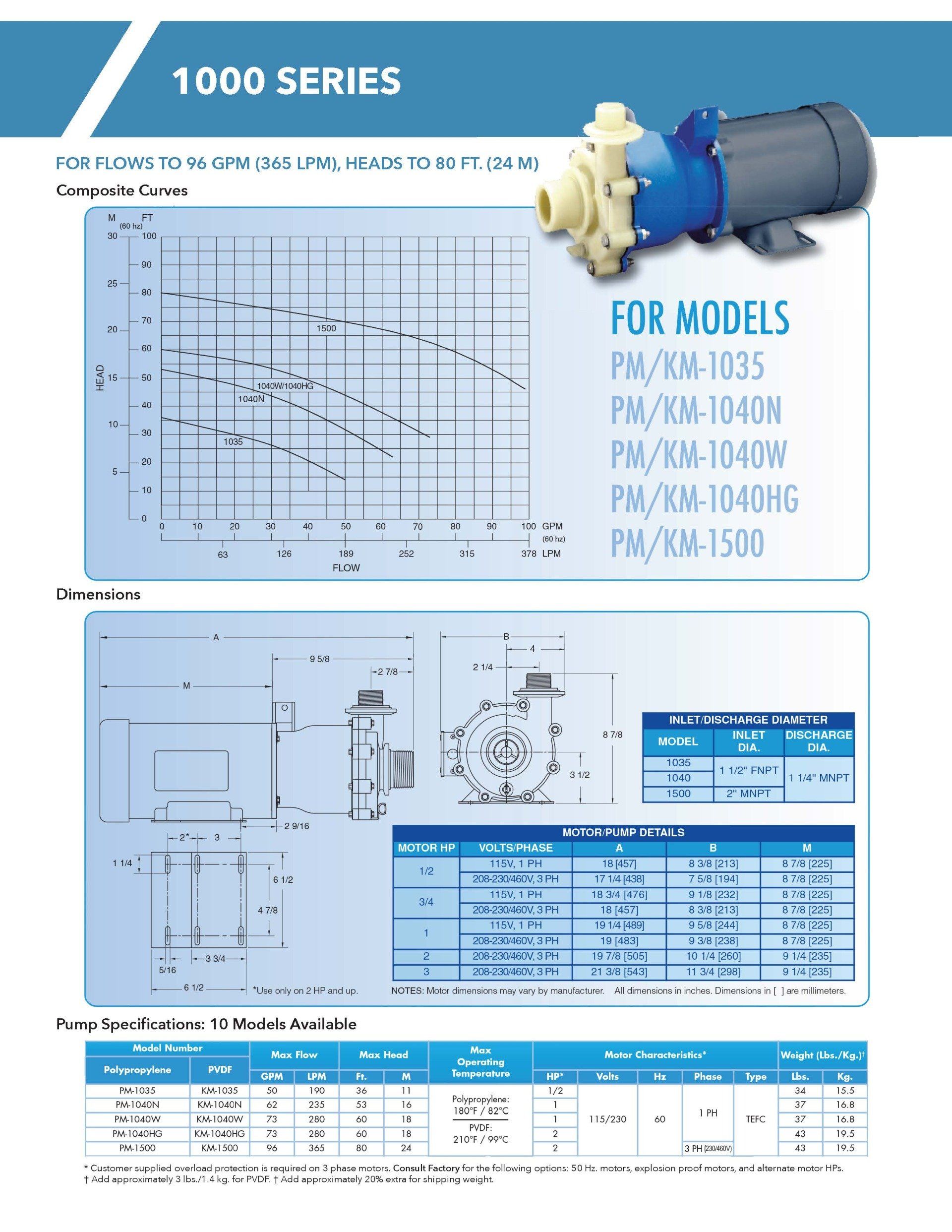

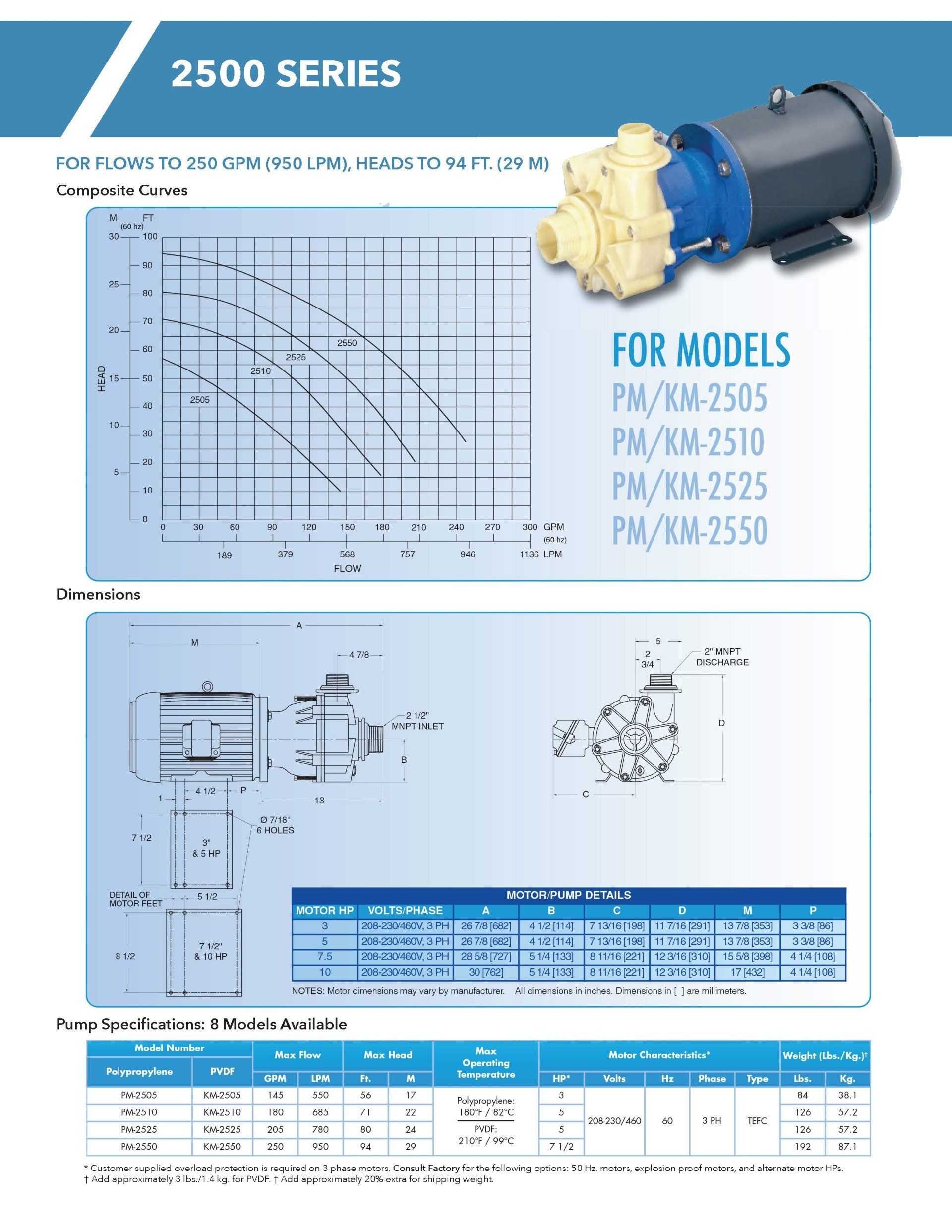

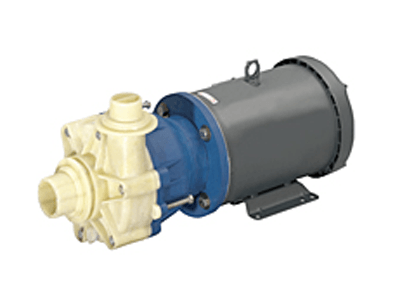

Sethco® Magnetic Drive End Suction Pumps

Sethco® magnetic drive end suction pumps are precision designed to meet the demands of a wide range of OEM, chemical and industrial applications. These pumps can be used for highly corrosive or mild chemicals, acids or solvents. Their simple efficient design provides reliable, trouble-free performance and easy maintenance.

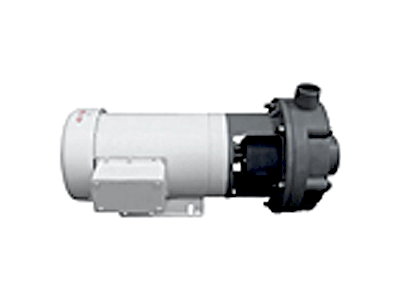

Sethco® Forged CPVC End Suction Pumps

The unique Sethco® forged CPVC casing design and rear pullout assembly assures long pump life with minimum maintenance for a variety of corrosive applications.

• Capacities to 240 GPM (55 m3/hr)
• Heads to 140 feet (43 m)
• Motors to 10 HP (7.5 kW)
• Open or closed impeller options
• Flanged inlet and outlet connections available
• Close coupled or frame mounted
• Two sizes available

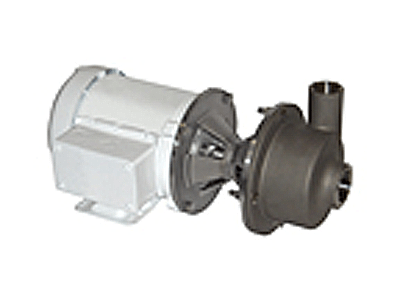

Sethco® 316 Stainless Steel End Suction Pumps

Sethco® 316 stainless steel end suction pumps are ideally suited to a wide range of chemical, laboratory and processing applications. They provide excellent corrosion resistance to corrosive liquids.

• Capacities to 105 GPM (400 LPM)
• Heads to 72 feet (22 m)
• Motors to 2 HP (1.5 kW)
• Multiple mechanical seal options
• Four close coupled sizes

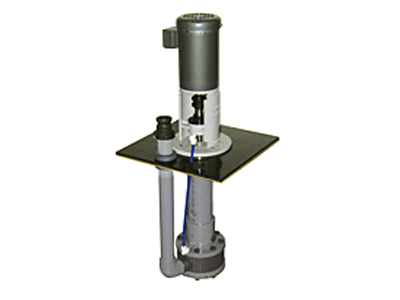

Sethco® Vertical Centrifugal Sump Pumps

Sethco® UD/UV Series heavy duty industrial sump pumps are ideally suited, structurally and hydraulically, for heavy-duty service. They provide outstanding mechanical strength at elevated temperatures and excellent chemical resistance to concentrated acids and alkalies. The pumps resist wear, withstand impact, and maintain dimensional stability through long life service.

• Capacities to 200 GPM (46 m³/hr)
• Heads to 145 feet (45 m)
• Standard pump lengths from 2 to 15 feet (4.6 m)
• Motors to 15 hp

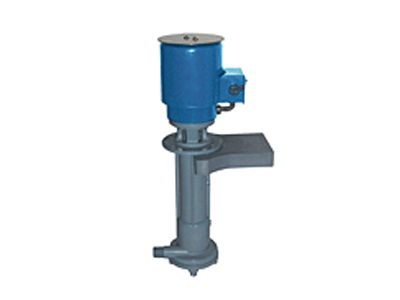

CPVC/PVDF Cantilever Design Sealless Pumps

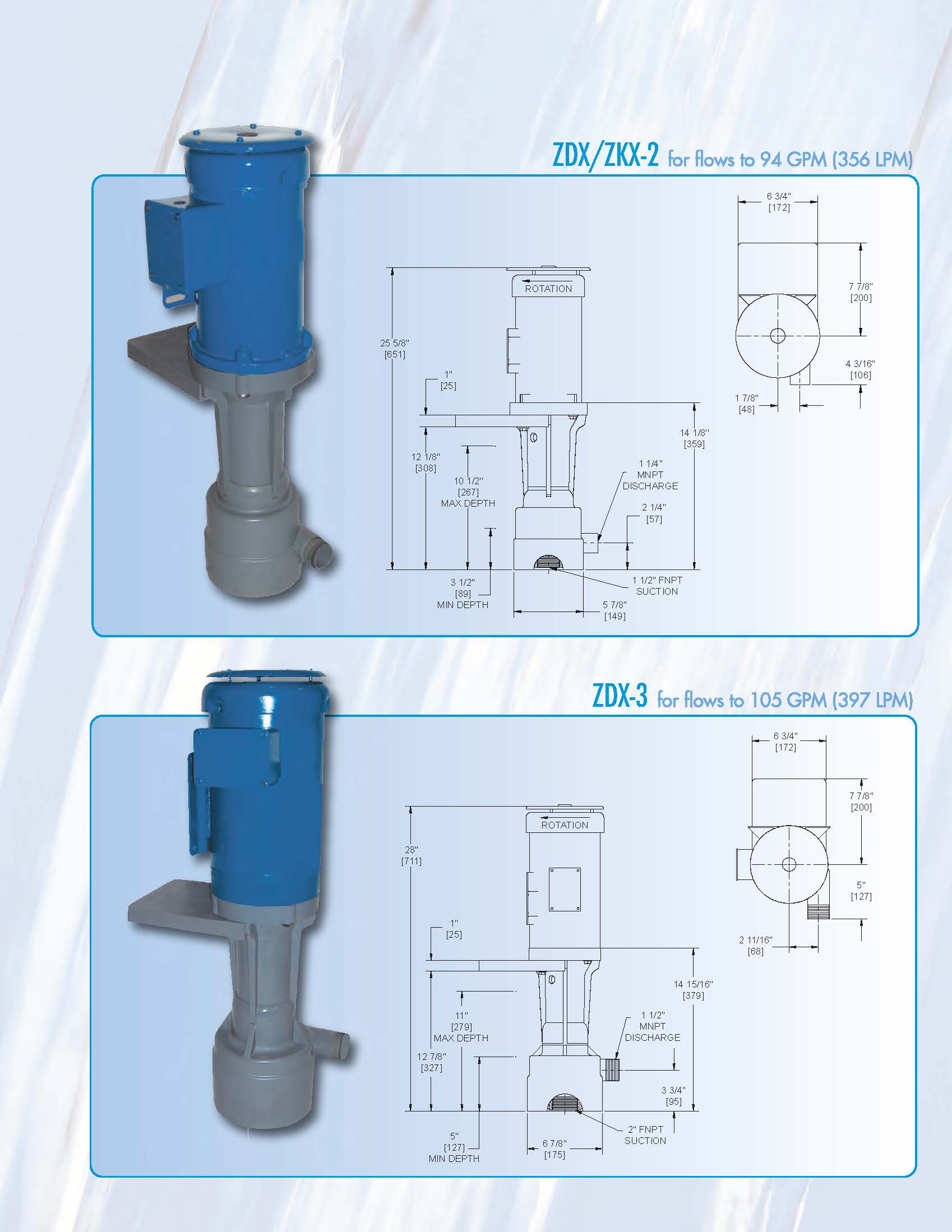

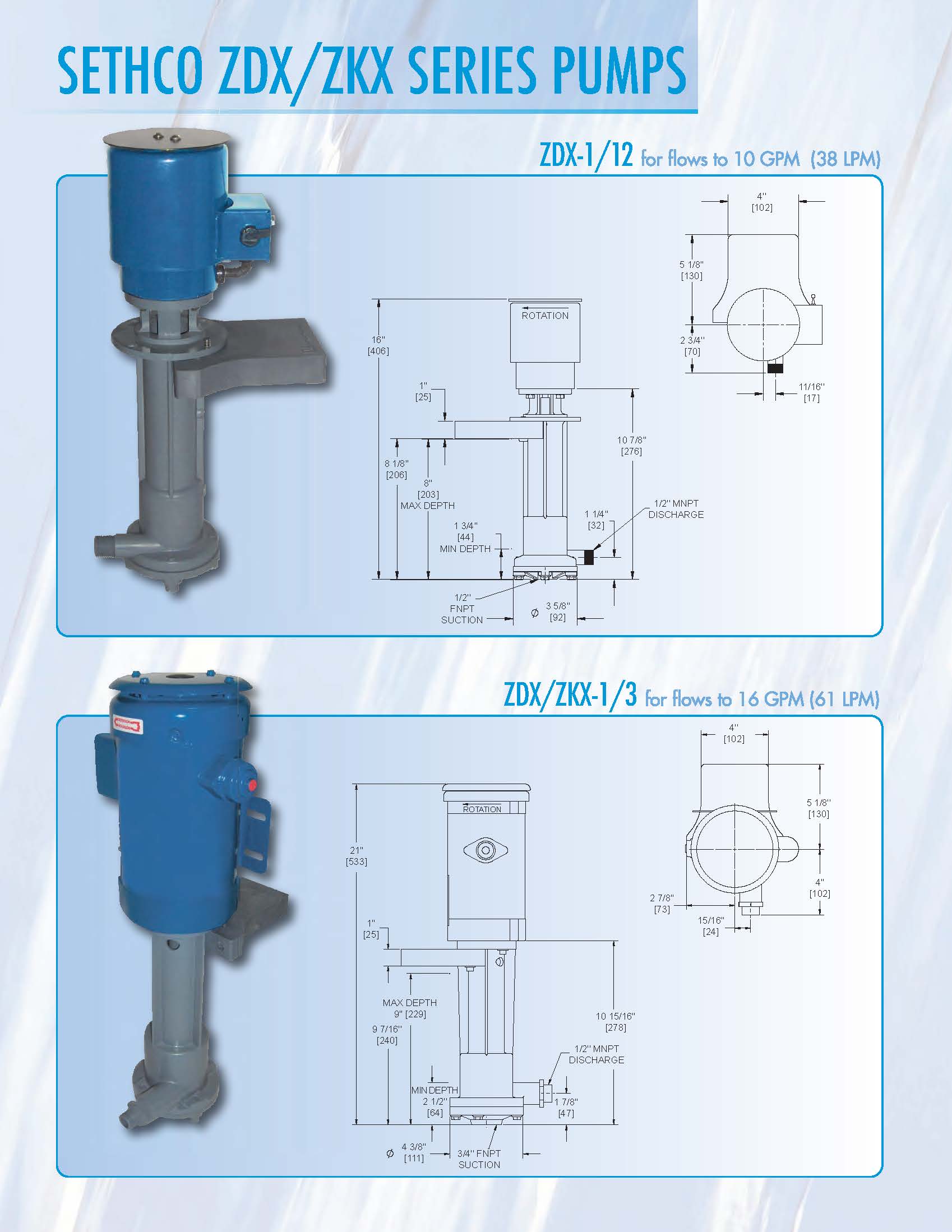

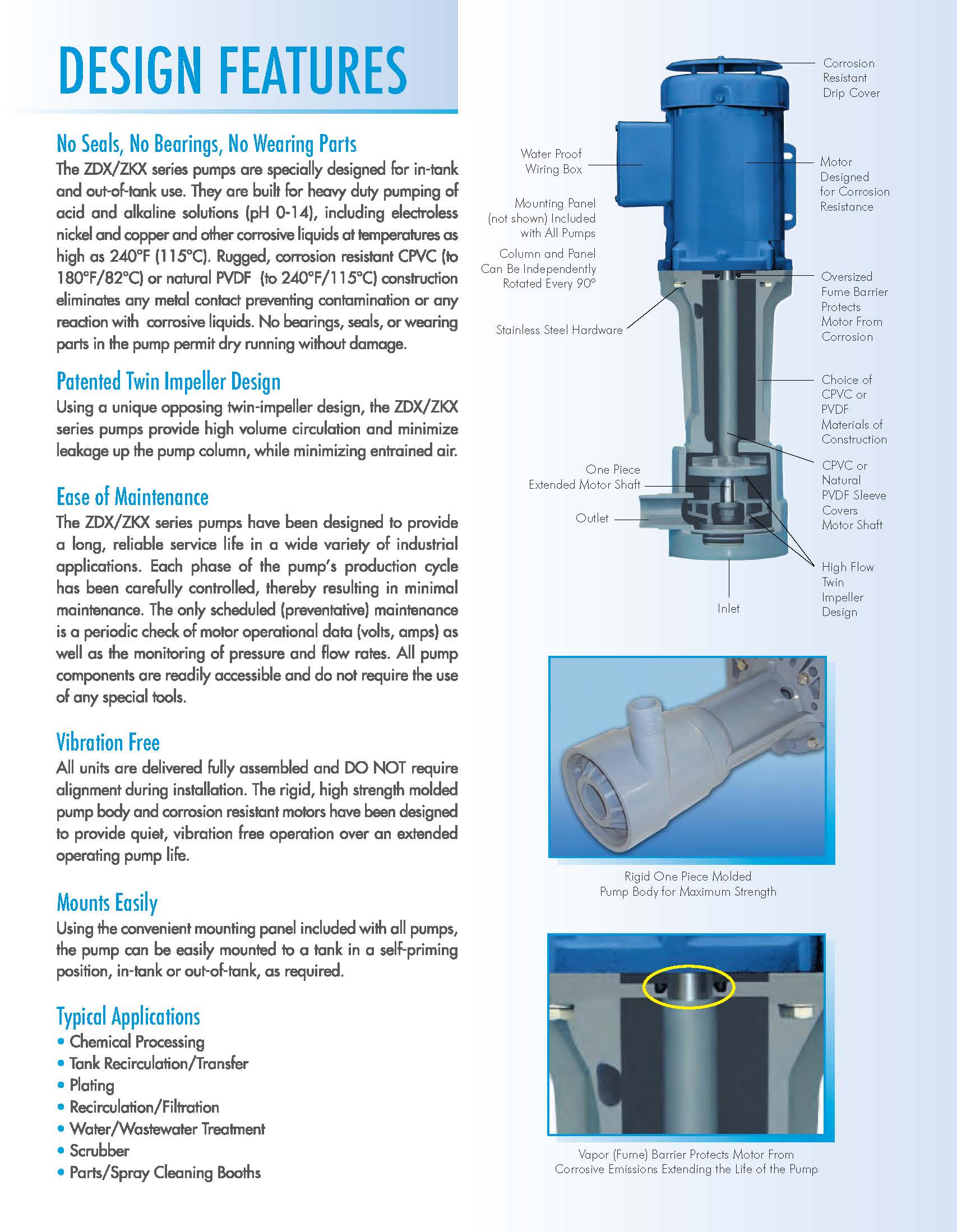

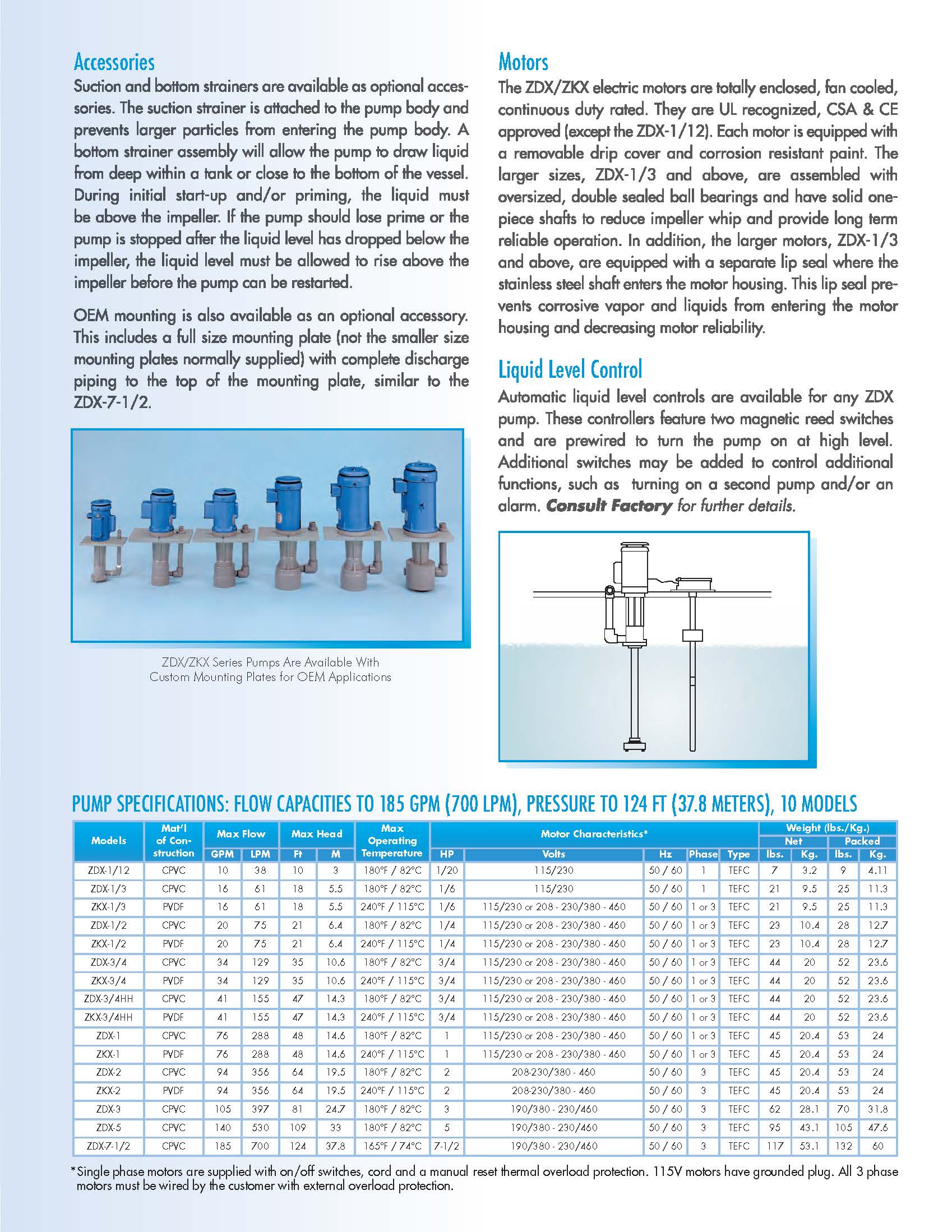

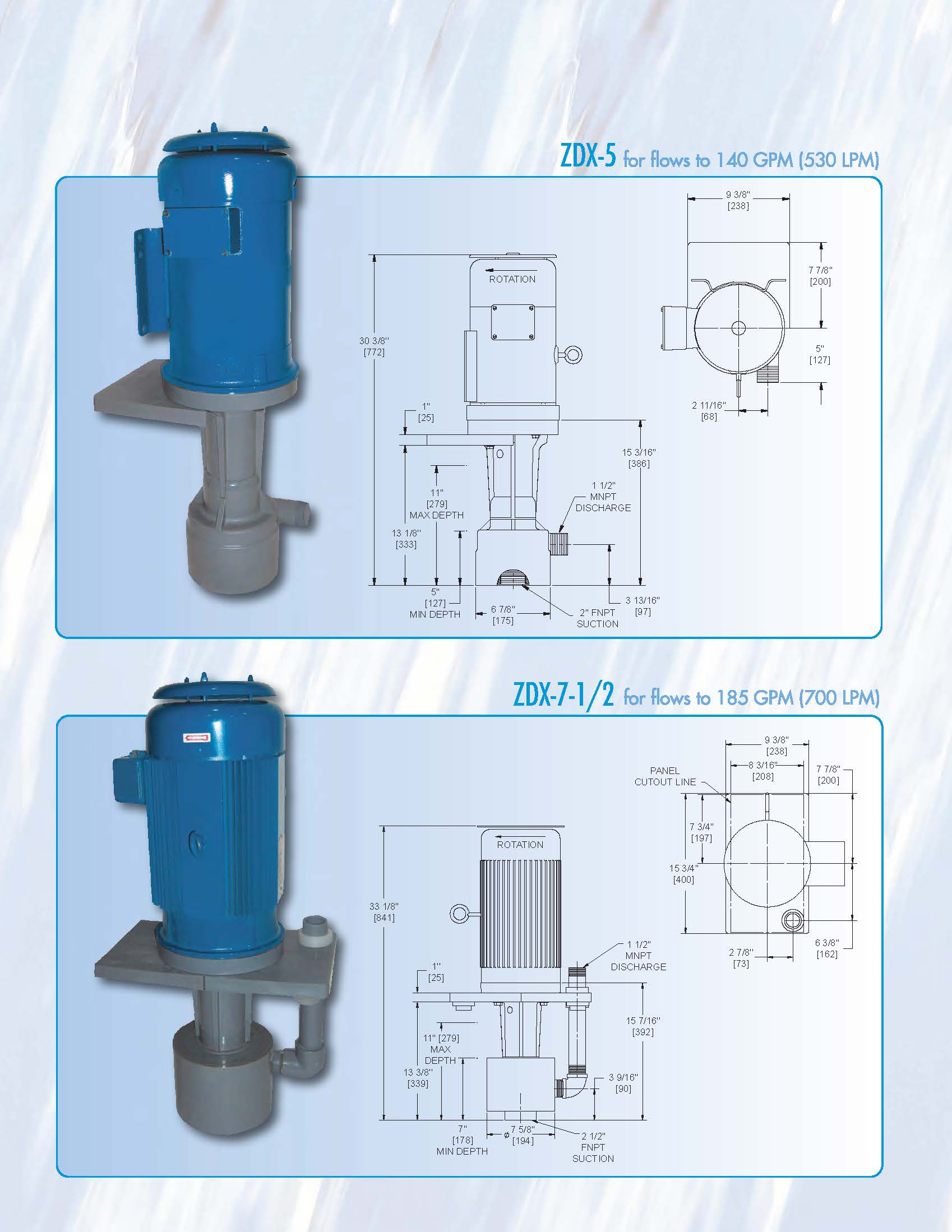

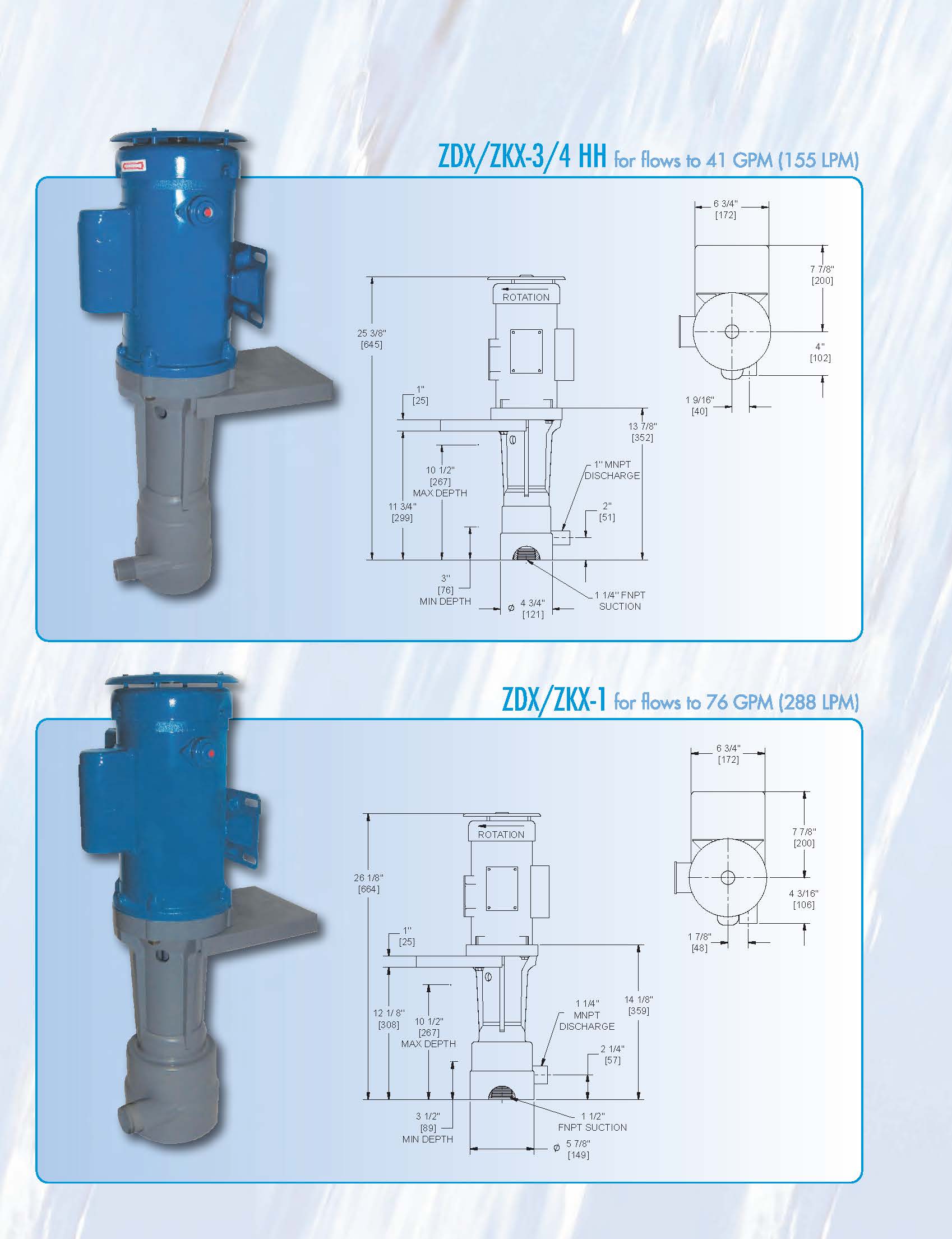

Sethco® ZDX / ZKX Series bearing free sealless cantilever pumps are specifically designed for in-tank and out-of-tank use. They are built for heavy duty pumping of acid and alkaline solutions. Fully portable, these compact pumps can easily be transferred to different working areas as needed. By means of a convenient mounting panel, the pump can be set in a self-priming position in-tank, or outside the tank, as necessary. Sethco's ZDX / ZKX series pumps incorporate a unique opposing twin-impeller design. This special patented feature provides high volume circulation and eliminates leakage up the pump column. No bearings or seals and no wearing parts in the pump permit dry running without damage. Rugged, corrosion resistant construction eliminates any metal contact preventing contamination or any reaction with corrosive liquids.

• Capacities to 185 GPM (45 m³/hr)
• Heads to 124 feet (38 m)
• Motors to 7.5 hp (5.6 kW)
• CPVC or Kynar construction
• No seals, bearings or wearing parts
• Easy maintenance
• Various mounting configurations available

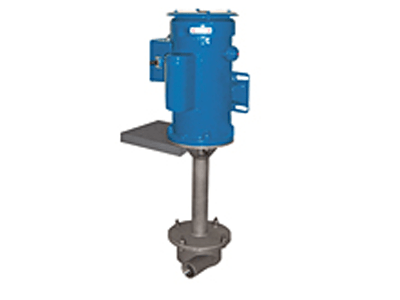

Stainless Steel Vertical Centrifugal Sealless Pumps

Sethco® ZSX Series stainless steel bearing free sealless vertical centrifugal pumps are specifically designed for in-tank and out-of-tank use. They are built for heavy duty pumping of acid and alkaline solutions. Fully portable, these compact pumps can easily be transferred to different working areas as needed. By means of a convenient mounting panel, the pump can be set in a self-priming position in-tank, or outside the tank, as necessary. Sethco's ZSX series pumps incorporate a unique opposing twin-impeller design. This special patented feature provides high volume circulation and eliminates leakage up the pump column. No bearings or seals and no wearing parts in the pump permit dry running without damage. Rugged, corrosion resistant construction eliminates any metal contact preventing contamination or any reaction with corrosive liquids.

• Capacities to 185 GPM (45 m³/hr)
• Heads to 124 feet (38 m)
• Motors to 7.5 hp (5.6 kW)
• 316SS construction
• No seals, bearings or wearing parts
• Easy maintenance
• Various mounting configurations available

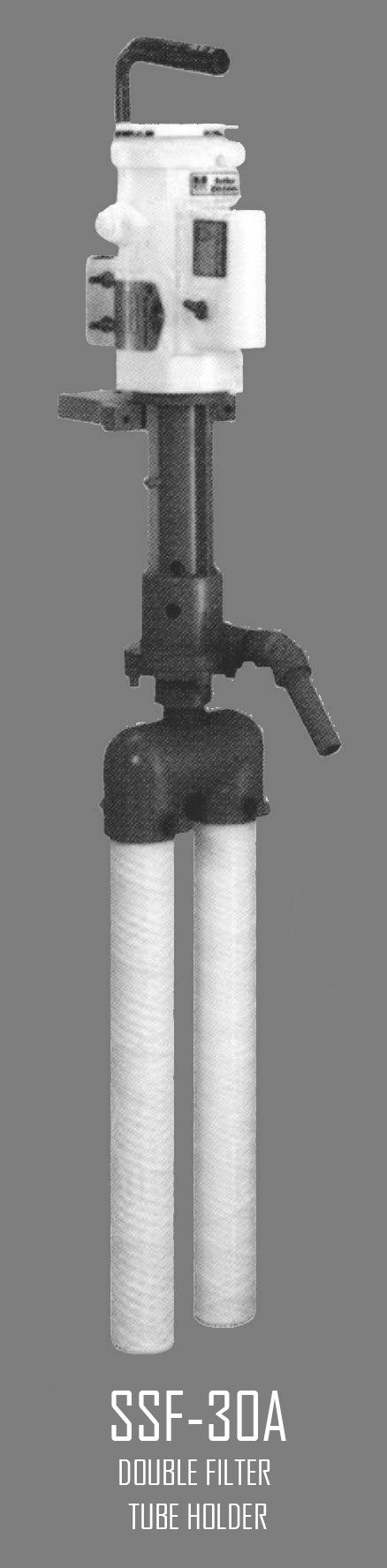

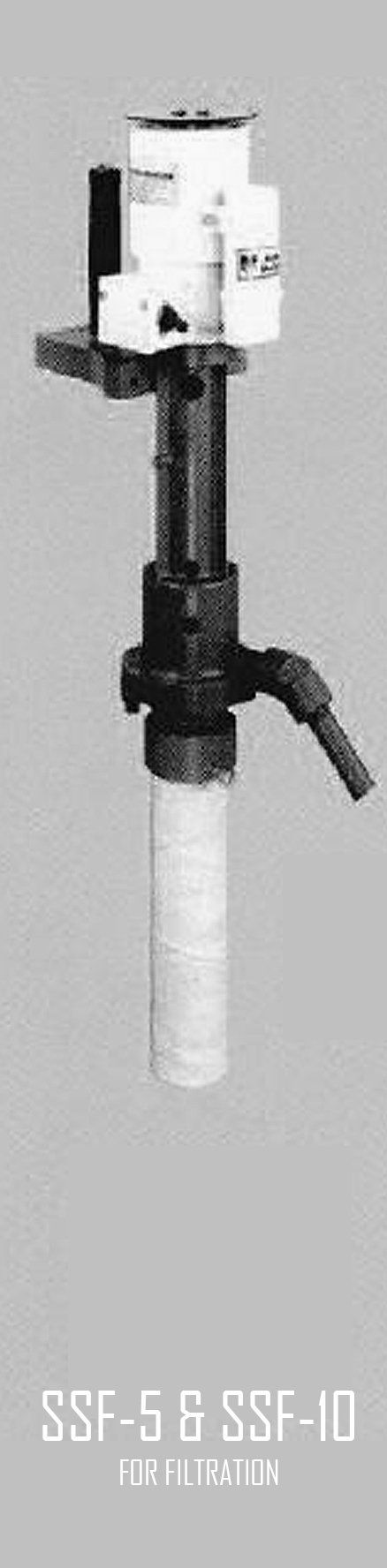

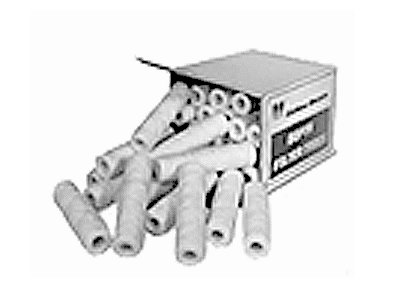

Wound Polypropylene Depth Filter Cartridges

Sethco filter tubes are fabricated of natural or synthetic fiber wound over a perforated plastic or metal core. The precision winding pattern covers the entire depth of the filter tube with hundreds of funnel shaped tunnels which become gradually finer from the outer surface to the center of the tube and trap progressively finer particles as the fluid travels to the center. This allows much greater solids retention capacity than is associated with surface filter media of the same dimensions.

Sethco depth filter tubes feature:
-High flow rate - low pressure drop
-High efficiency
-High solids holding capacity - long service life
-Simple to use - easy to replace
-Standard sizes
-Specifically designed for corrosive service
-Economical

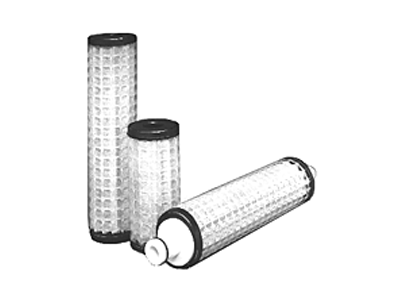

Pleated Polypropylene Filter Cartridges

Sethco's pleated poylpropylene filter cartridges feature an extended filter surface for greater dirt holding capcity compared to conventional cylinder, sleeve or wound type depth filter tubes.

• 3 or 20 micron filtration
• Available in 10" and 20" nominal lengths
• Reusable - Can be backwashed
• No finishing agent
• Great particle holding capacity
• Cartridges fit most single or multi-tiered chambers that use standard 10" tubes
• More filtration in less space
• Resistant to acids and alkalies
• No liquid by-pass
• Ideal for water clarification
• Operating temperature to 170° F
• Economically priced - quantity discounts available

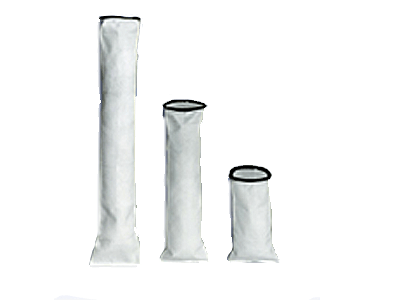

Filter Bags

Sethco filter bags are constructed of high strength polypropylene felt. Bags can be cleaned and reused, and are sized for a specific Sethco chamber.
