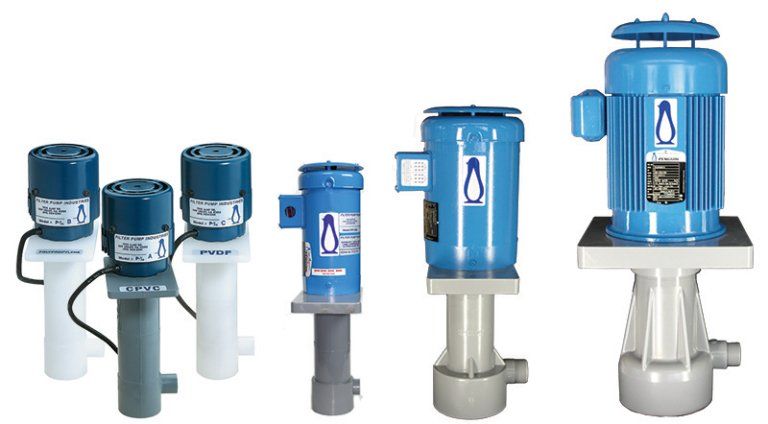

PENGUIN SERIES P SEALLESS IN-TANK VERTICAL PUMPS

       Flows to 175 gpm

Vertical sealless pumps are corrosion-resistant CPVC, polypropylene or PVDF construction. No metal contact. No pump bearings, bushings or seals. Self priming when immersed. Runs dry without damage. Temperatures to 250ºF. These vertical sealless pumps have applications for Sump Pumping / Draining, Transfer Pumping, Recirculation Pumping, Plating, Wet Fume Scrubbing, Waste Treatment, Wet Processing, Etching and Filtering. Penguin vertical immersible pumps are compact, portable, and self-priming when immersed. Simple in design and efficient in performance, this pump has only one moving part. Constructed completely of CPVC, polypropylene, or PVDF where in contact with the solution, this pump is suitable for pumping, agitating, fi ltering, or circulating acid and alkaline solutions (pH 0-14), abrasive fl uids, and other corrosive solutions. Maximum temperature ratings are as follows: CPVC-180ºF, polypropylene-150ºF, and PVDF-260ºF. Because PVDF is ultra pure, it is recommended for use in high purity deionized water, HF, and liquids that must remain contamination free. The Penguin vertical pump has a rigid, solid stainless steel, one-piece rotor drive shaft covered with a two-piece sleeve and impeller. Titanium shafts are available as an option. Because of the unique double impeller design, this pump has no seals, no pump bearings, no bushings, no wearing parts, and thus bearings, no bushings, no wearing parts, and thus requires little maintenance

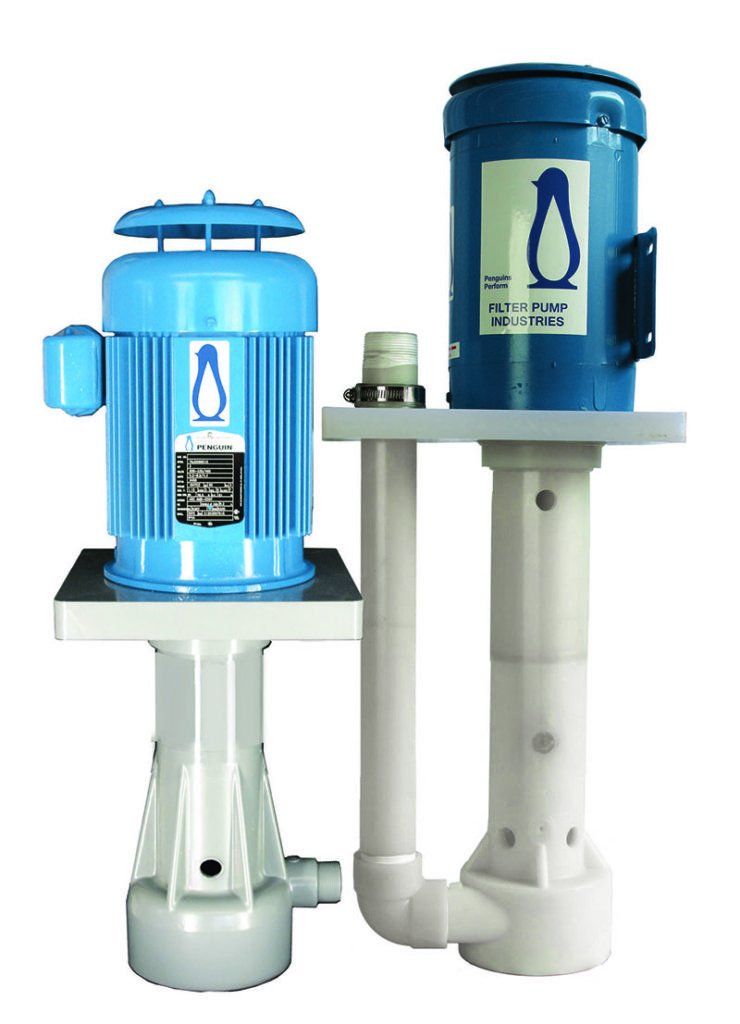

PENGUIN SERIES P-X CPVC EXTENDED VERTICAL IMMERSIBLE PUMPS (Model PX-10AK)

 are simple in design, efficient in performance, and self-priming when immersed in solution. Constructed completely of CPVC with PTFE wear ring, or CPVC with PVDF impeller where in contact with the solution, this pump is suitable for pumping, agitating, filtering, or circulating acid and alkaline solutions, abrasive fluids, and other corrosive solutions up to 180 degrees F maximum temperature.

Standard motors are three phase and totally enclosed fan cooled, with two part epoxy coating for additional corrosion resistance. A rigid, solid stainless steel rotor/drive shaft with an oversized bearing is employed to minimize shaft alignment problems, while allowing for quick and easy bearing replacement when required. The three phase motors are shipped unwired. A standard air purge/vent screw assembly in the bottom motor housing extends the life of the bottom motor bearing when utilizing minimal 5 psi air to create a positive displacement. An optional ceramic sealing sleeve is available for added corrosion resistance in preventing fumes and condensables from contacting the metallic shaft or impeller insert.


Penguin vertical pumps are versatile, easy to install, and require a minimal amount of tank space, thus saving valuable floor space.
Features:
• CPVC Construction
• Optional PVDF Impeller Available
• No Metal Contact
• Chemical Resistant
• Self-Priming When Immersed
• Dry Run Capability w/ PVDF Impeller

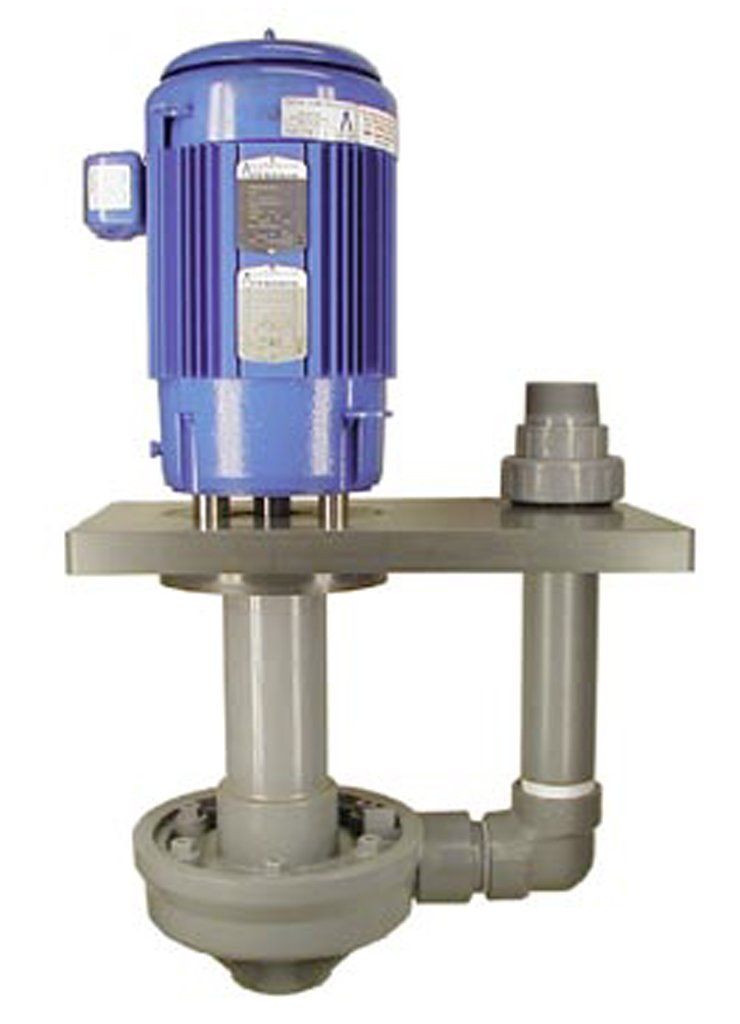

Penguin Series P-HF CPVC vertical pump

Our Penguin Series P-HF CPVC vertical pumps are simple in design, efficient in performance, and self-priming when immersed in solution. With a double impeller design and no seals to leak or bushings or bearings to wear, this pump can run dry without damage while requiring little or no maintenance. Constructed completely of CPVC where in contact with the solution, this pump is suitable for pumping, agitating, filtering, or recirculating acid or alkaline corrosive solutions over the entire 0-14 pH range up to180°F maximum temperature.
Standard motors are three phase and totally enclosed fan cooled, with two part epoxy coating for additional corrosion resistance. A rigid, solid stainless steel rotor/drive shaft with an oversized bearing is employed to minimize shaft alignment problems, while allowing for quick and easy bearing replacement when required. The three phase motors are shipped unwired. A standard air purge/vent screw assembly in the bottom motor housing extends the life of the bottom motor bearing when utilizing minimal 5 psi air to create a positive displacement.

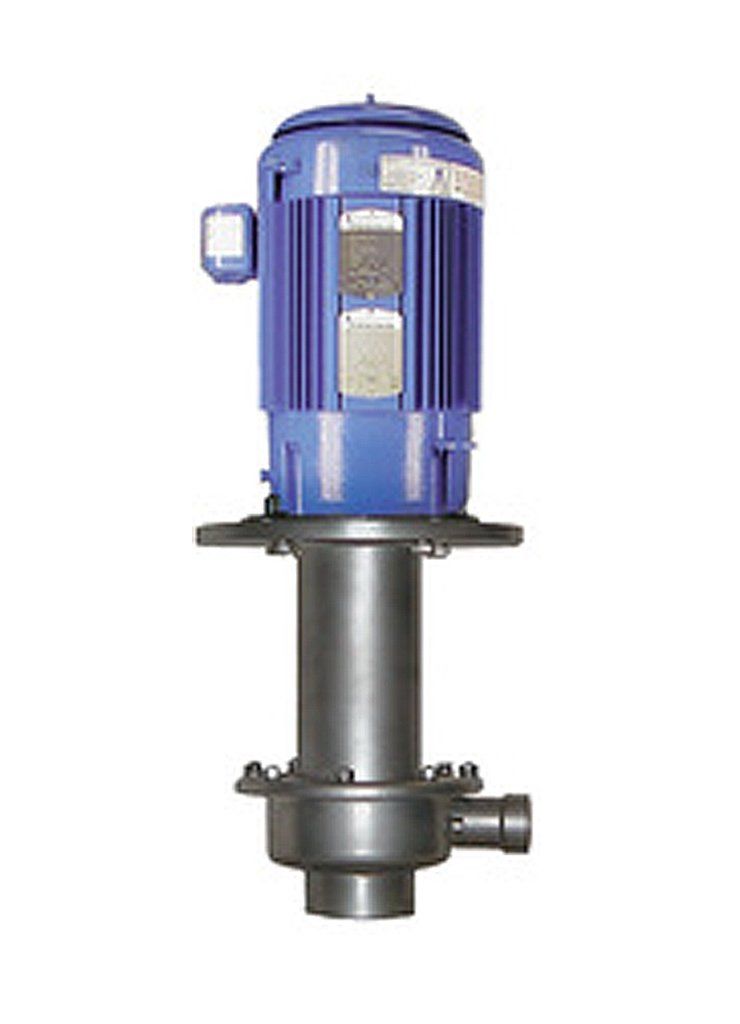

Penguin Stainless Steel and Titanium Vertical Pumps

PENGUIN SERIES PSS STAINLESS STEEL VERTICAL IN-TANK PUMPS are compact and simple in design, having only one moving part, yet highly efficient with proven performance. A Penguin vertical in-tank pump is corrosion-resistant and all-purpose, ideal for many OEM wet processing applications. Whether you are pumping cleaners, caustics, salt solutions, chlorinated solvents, photographic chemicals, deionized water, fatty, phosphoric, citric, or lactic acids, they can be pumped with confidence. Maximum temperature ratings are primarily dependent on the elastomer employed and the vapor pressure of the liquid being pumped.316 stainless steel vertical pumps utilize a replaceable coupled shaft using multiple set screws to minimize shaft deflection and misalignment associated problems while allowing the use of standard NEMA motors. They are readily available at most local motor suppliers, thus, saving prolonged downtime and money. Standard elastomers are EPR. Optional viton and PTFE elastomers are also available. A motor stand-off and polytetrafluoroethylene (PTFE) slinger/disk provide optimum bottom motor bearing protection against chemical fume corrosiveness in the Penguin vertical in-tank pump. Single-phase motors are wired for 115 volts using a six-foot cord and grounding plug or for 230 volts using a six-foot cord without plug. All three-phase motors are shipped unwired, whereby the direction of motor rotation must be determined by the end user prior to operation.

PENGUIN SERIES PT TITANIUM VERTICAL IMMERSIBLE PUMPS

are compact and simple in design, having only one moving part, yet highly efficient with proven performance. Because of the unique impeller design in conjunction with no “mechanical seal” or “support bearing” employed, wearing parts are minimized with labor cost and down time greatly reduced. Constructed of industrial grade 2 titanium, these general corrosion-resistant all purpose pumps are ideal for many OEM and chemical wet processing applications – whether you are pumping cleaners, caustic materials, salt solutions, chlorinated solvents, photographic chemicals, de-ionized water, fatty, phosphoric, citric, or lactic acids – we can pump it with confidence. Maximum temperature ratings are primarily dependent on the elastomer employed and the vapor pressure of the liquid being pumped.
Penguin Series PT vertical pumps have a rigid, solid titanium shaft, permanently attached to the rotor drive shaft of the motor without the employment of coupling/set screw assemblies, thus minimizing shaft deflection and misalignment associated problems. One pump size, available 1/2hp through 1 1/2hp, these pumps are versatile, easy to install, require minimal tank space, and can be easily moved from tank to tank.
Standard pump models are equipped with a totally enclosed fan cooled (TEFC) motor. Most motor housings come standard with epoxy coating for added resistance to the chemical corrosion. Standard o-ring elastomers employed are EPR with optional viton and PTFE elastomers available. Single phase motors wired 115 volt are supplied with a 6 foot cord and grounding plug, while those wired for 230 volt are supplied with a 6 foot cord but no grounding plug. Three phase motors are shipped unwired.
The titanium vertical in-tank pump and out-of-tank pump employ a cantilevered shaft, which eliminates employment of any pump bushing or bearing whatsoever, thus allowing these pumps to run dry without damage. Employment of a viton vapor seal assembly provides added bottom motor be aring protection against chemical fume corrosion. Series P titanium pumps may be mounted and operated inside or outside the tank similarly to the Series P plastic vertical pumps.

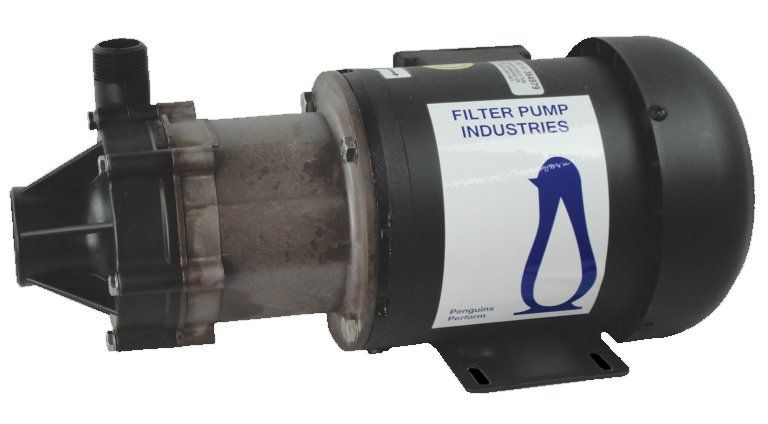

SERIES M MAGNETIC SEALLESS DRIVE PUMPS

are corrosion resistant to a wide range of chemical solutions including acids, alkalies and caustics up to 180ºF. There is no shaft seal, so there is no seal wear or leakage and there is no seal friction to cause loss of pumping power. The only moving parts inside the pump volute are the impeller magnet assembly and the bushing, which rotates on the pure ceramic spindle. Powerful impeller and drive magnets provide full torque, prevent slippage and give instant start-up.Penguin magnetic sealless drive pumps are constructed of polypropylene and/or ryton, carbon or chemloy or ryton/teflon (bushing), ceramic (spindle and thrust washers) and viton (O-ring). As an option, single phase motors are wired for 115V and supplied with cord and grounding plug.Model M-3/4 can be supplied as a self-priming unit using a 1HP motor. Also as an option, Penguin priming chambers can be supplied to other M series pumps to facilitate priming the pump and reduce the danger of running the pump dry. Mounted on a common polypropylene base, the priming chamber is piped directly to the suction of the pump with a flow valve on the pump discharge. Casters can be added for portability. 316 SS and Kynar construction are available on many models.

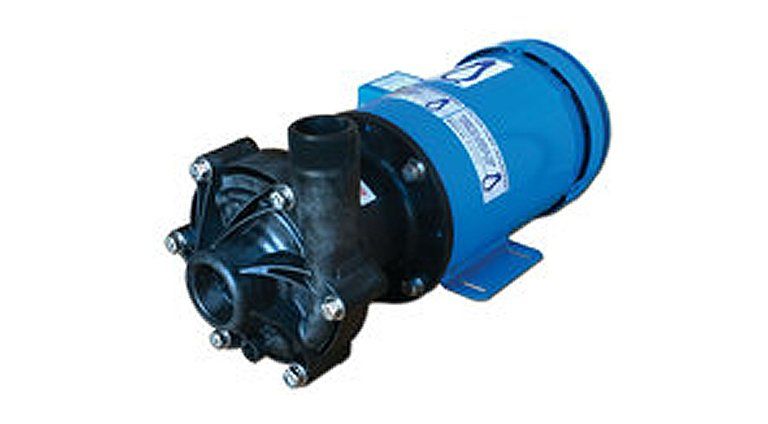

HIGH VOLUME MAGNETIC SEALLESS DRIVE PUMPS SERIES MTD (Models MTD-2 and MTD-3)

 The Penguin MTD Series magnetic sealless drive pumps incorporate the latest design in magnetic drive sealless centrifugal pumps. MTD series uses the strongest Neodymium magnets intended to handle specific gravity to 1.8. Hydraulically efficient and constructed of highly corrosion resistant materials makes this latest model the best choice in magnetic drive pumps. The MTD series supplied with a carbon bushing can withstand extended dry running.

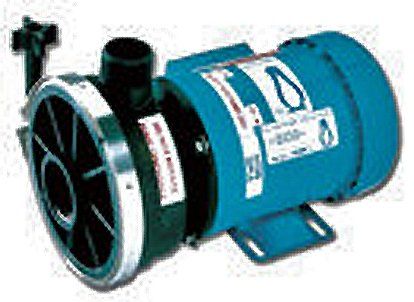

SERIES HOM CENTRIFUGAL PUMPS (Model HOM-1/2V)

• horizontal pumps and centrifugal pumps are designed as an economical alternative for OEM applications which require high flow rates under moderate head conditions with minimum suction lift. A true volute design accompanied by a full diameter impeller creates a highly efficient, energy-saving pump since less horsepower is required. The true volute design eliminates shock losses, prolongs seal life, and produces smooth and quiet operation. The rear impeller vanes are designed to insure proper lubrication of the seal cavity while the central discharge of the pump housing prevents air locking.
  The HOM series horizontal pumps and centrifugal pumps are easy to assemble and disassemble. The pump bracket and half the volute are one piece. The V-band tightens and seals the front cover to the volute pump housing, thus eliminating the use of many housing cover nuts and bolts. The volute pump housing and cover are supplied in glass filled polypropylene and the impeller is CPVC.
  Motors and Shafts

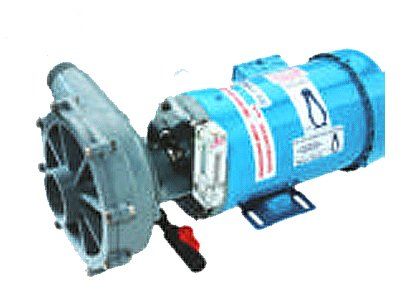

PENGUIN SERIES HV HORIZONTAL END SUCTION PUMPS

Series HV Horizontal Pumps End Suction Centrifugal pumps are designed to the latest hydraulic technology. A true volute design provides an energy saving pump because less horsepower (HP) is required. The HV series horizontal pumps has a higher flow versus pressure, yet very smooth and quite operational. The volute design helps to reduce vibrations and shock losses, premature shaft fatigue and bearing failures, and radial thrust loads while prolonging mechanical seal life. The rear impeller vanes are designed to help assure proper lubrication of the mechanical seal cavity while balancing axial forces hydraulically.Penguin series HV horizontal pumps are easy to assemble and disassemble. The pump bracket and half the volute are one piece, constructed of CPVC, there is no metal contact with the solution being pumped. If the HV series pump should accidentally run dry excessively, usually the seal insert can be replaced in lieu of replacing the entire pump housing/motor bracket assembly, thus saving costly repair/replacement dollars.
